The C3S is a numerically controlled vertical router for Aluminum, PVC, Fiberglass and steel, capable of working on 3 sides of the profile. Pneumatic tilting working table: +90°/0°/-90°, intermdiate angles are obtained by mechanical stops. Spindle speed adjustment from 3000 to 15000 rpm is controlled by a frequency inverter.

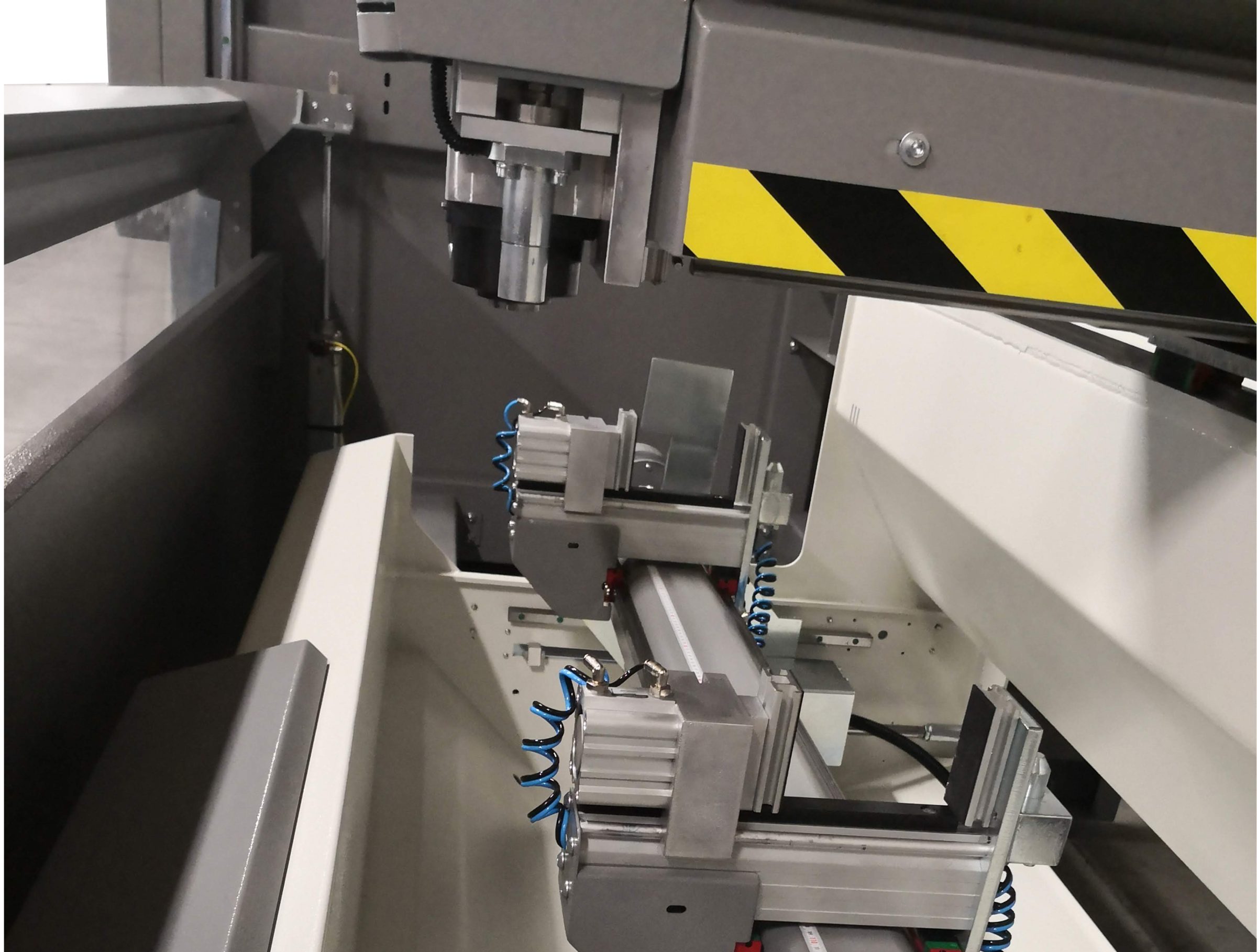

Numerically Controlled interpolaton of X and Y. Axis’ X, Y and Z movements utilize brushless motors. The unit comes complete with 4 pnuematic double acting clamps for material fixturing. Software compensated tool diameter correction. Left and right profile zero stops. Milling dimensions: X= 3000 mm Y= 150mm Z= 150mm. Perimeter protection for safety, optional. TS7005 TouchScreen control allows for remote assistance and importation of DXF files for ease of programming.
Atlantis C3SR – CNC machining center with 3 meters working capacity
CNC machining center with 3 meters working capacity
Machining center for aluminum, PVC, light alloy and steel profiles with 3 or 4 controlled axes.
